Features

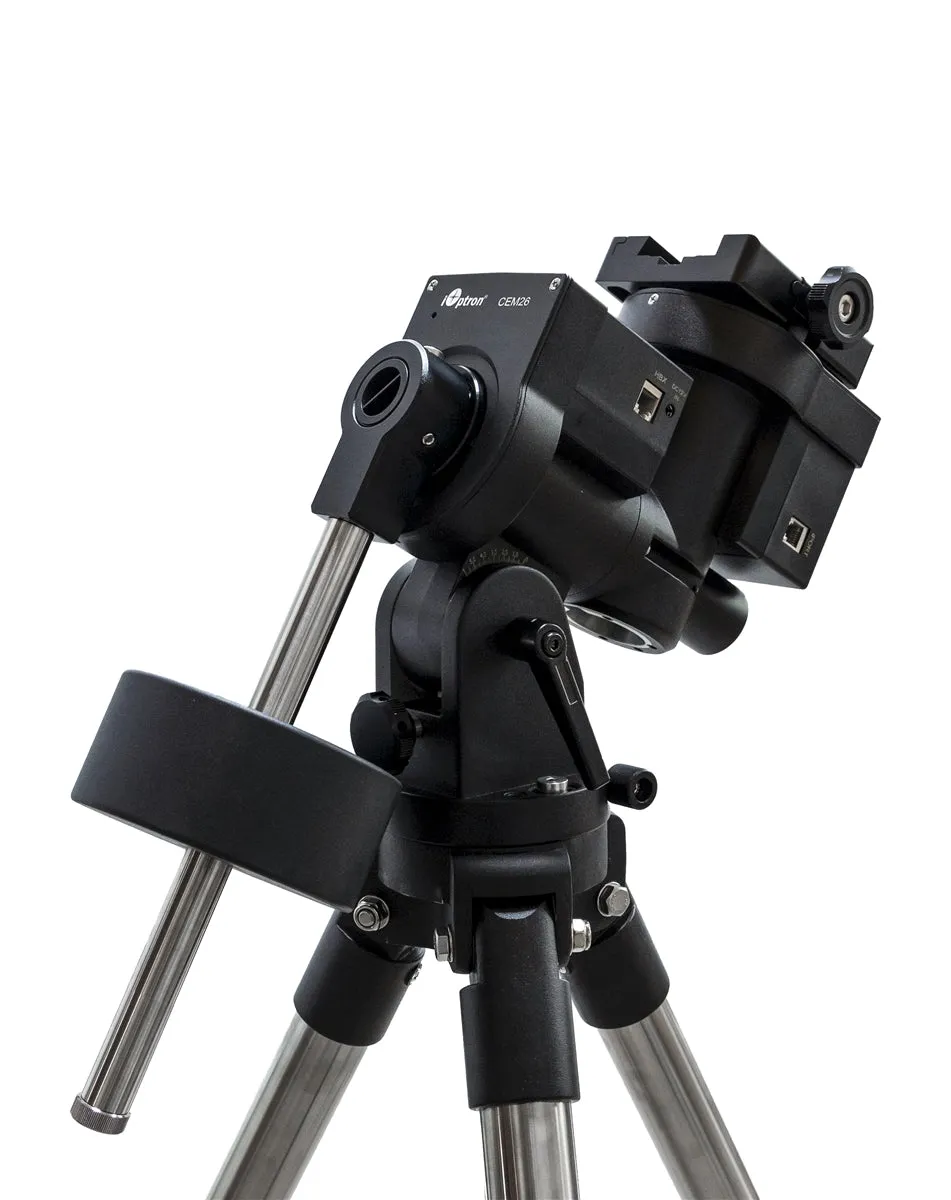

- Unique design, center-balanced equatorial mount (CEM) for maximum payload and minimum mount weight
- Ideal for both visual observation and astrophotography
- PE < 0.3 arcsec rms
- Payload of 12 kg (26 lbs) with the mount-only weight of 4.5 kg (10 lbs)
- CNC machined and cast metal body
- Spring loaded gear system
- Large easy to use quick-lock gear clutches
- 0º latitude operation with optional adapter
- Stepper motor with low power consumption
- iOptron AccuAlignTM calibrated polar scope
- Polar alignment routine for those who can’t see the Pole Star
- Go2Nova® 8409 controller with Advanced GOTONOVA® GOTO Technology
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi
- USB port for firmware upgrade and computer control
- 1.5" heavy-duty stainless steel tripod (5kg)
- Die-cast metal tripod spreader with accessory tray
- Hard carrying case
- Optional 32-channel Global Positioning System (GPS)
- Optional iGuiderTM autoguiding system #3360
Specifications
| Mount | Center-Balanced Equatorial Mount |
| Payload * | 26 lbs (12kg), exclude counterweight |
| Mount weight | 10 lbs (4.5kg) |
| Payload/Mount weight | 2.60 |
| Structure Material | All metal, Casting CNC machined |
| Exterior Finish | Powder coating |
| Periodic error (PE) ** | <0.3 arcsec rms |
| PEC | Real-time PEC |
| Worm period | 600 sec |
| Right Ascension worm wheel | Φ88mm, 144 teeth aluminum |
| Declination worm wheel | Φ88mm, 144 teeth aluminum |
| Right Ascension axis shaft | Φ35mm steel |
| Declination axis shaft | Φ35mm steel |
| Right Ascension bearing | Φ55mm ball bearing |
| Declination bearing | Φ55mm ball bearing |
| Worm gears | Φ15.2mm, Brass |
| Motor drive | 1.8º stepper motor, 128X microdivision |
| Resolution | 0.17 arc seconds |
| Transmission | Synchronous belt |
| Latitude adjustment range*** | 0º ~ 60º |
| Azimuth adjustment range | ± 6º |
| Polar Scope | iPolar TM electrics polar scope |
| Level indicator | Level bubble |
| Hand Controller | Go2Nova® 8409 with ~212,000 objects database |
| Tracking | Automatic |
| Slew speed | 1×,2×,8×,16×,64×,128×,256×,512×,MAX(6º/sec) |
| Power consumption | 0.5A(Tracking), 0.8A(GOTO) |
| Power requiremention | 12V DC, 5A |
| AC adapter | 100V ~ 240V (included, for indoor use only) |
| Power-down memory | Yes |
| Wi-Fi | Built-in |
| Communication port | Yes (Wi-Fi and USB) |
| Autoguide port | Yes (ST-4 compatible) |
| Firmware upgrade | Yes |
| PC computer control | Yes (ASCOM) |
| Counterweight shaft | Φ20X200mm with a 120mm extension (M16, SS) |
| Counterweight | 10 lbs (4.5kg) |
| Tripod | 1.5" heavy duty stainless steel tripod (5kg) |
| Dovetail saddle | 3.8" Vixen-style, center adjustable |
| Hard case | Included |
| GPS | Optional external 32-channel GPS |
| Autoguiding | Optional external iGuider 1 |
| Operation temperature | -10ºC ~ 40ºC |
| Warranty | Two year limited |
* OTA size and length dependent, smaller than 6" in diameter recommended
** Measured with encoder on bench, 10 minutes
*** Optional low latitude adapter and/or small diameter CWs are needed when latitude <10º
